    flange butterfly valve

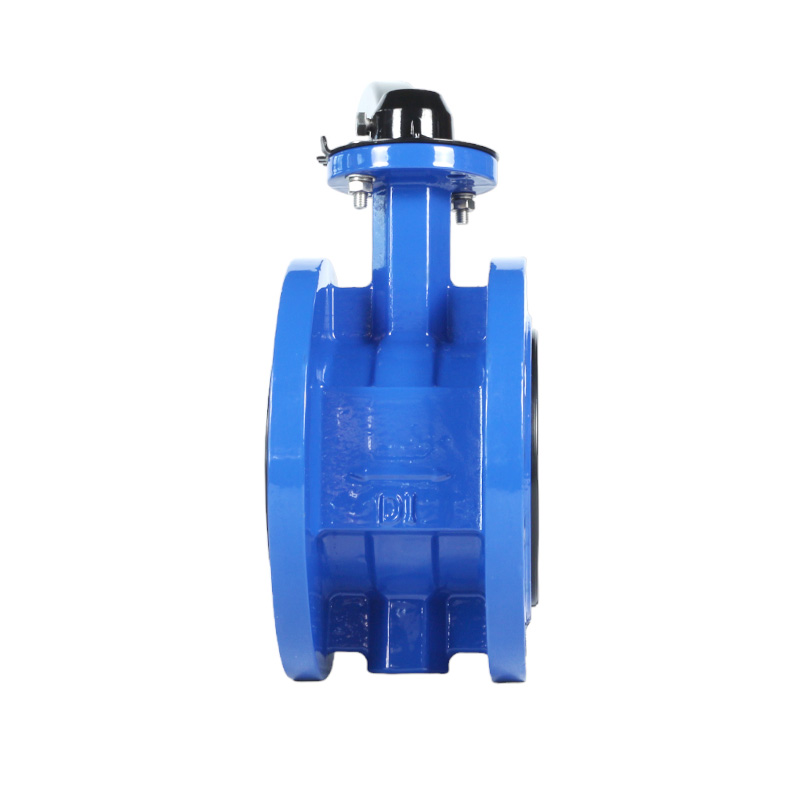

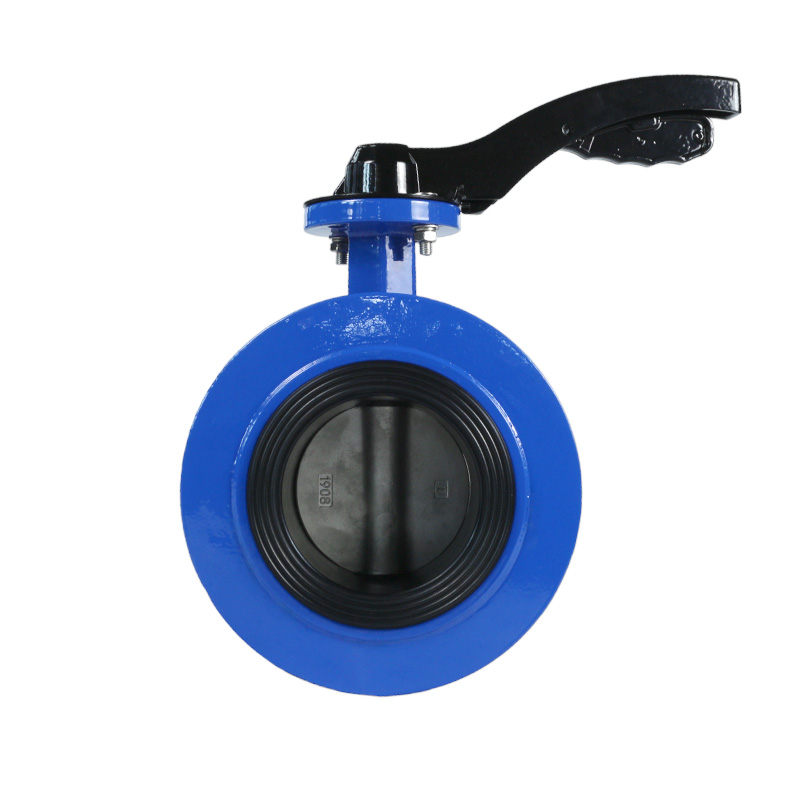

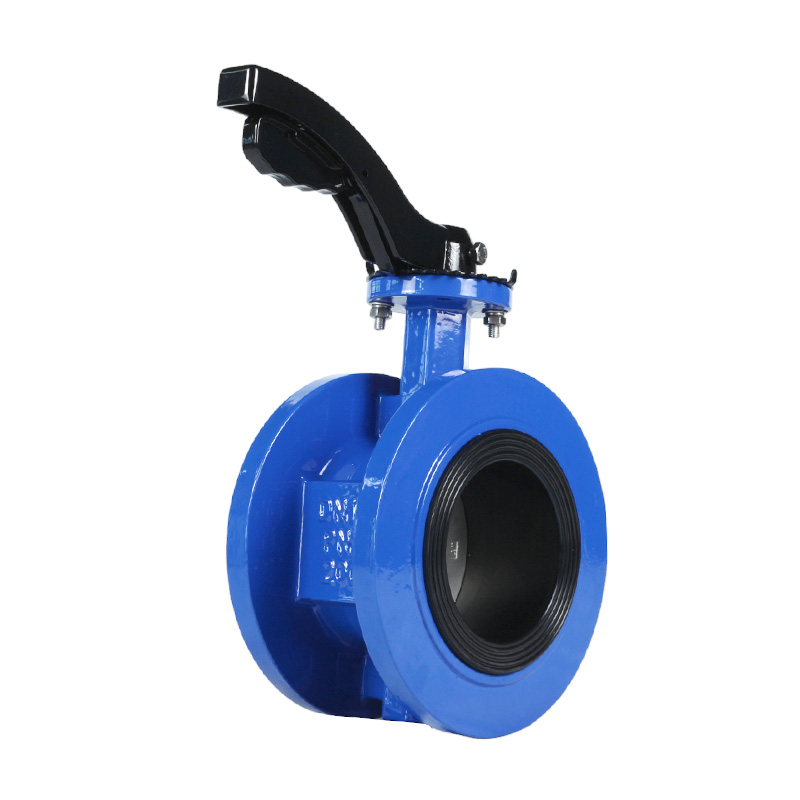

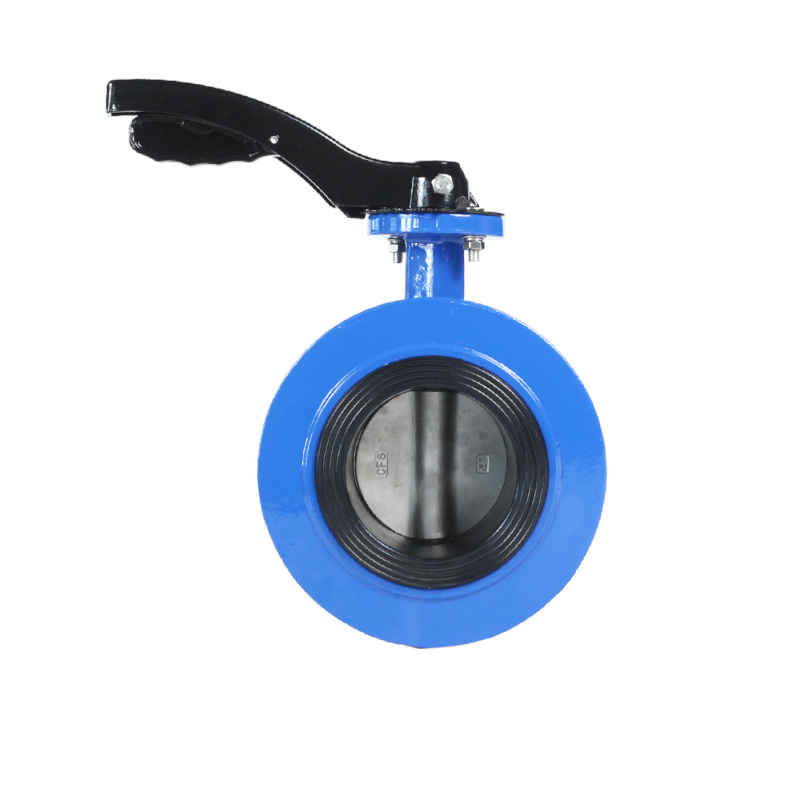

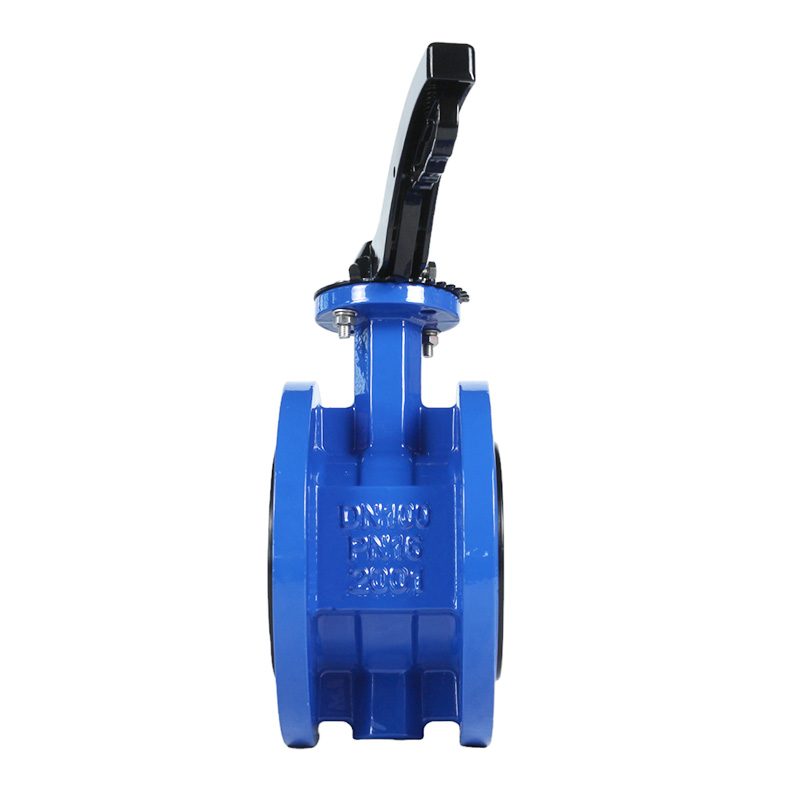

    Ductile Iron cast iron Multi-standard flange butterfly valve

    Flange cast iron butterfly valve suitable for multiple flange connection standards. Logo can be customized, DN50-DN1200

    Quantity:
    -
    +
    SUBMIT RFQ
    Product Details

    Size

    DN80-DN600

    DN650-DN3000

    Working pressure

    16Bar

    10Bar

    Shell

    24Bar

    15Bar

    Seal(Air)

    6Bar

    6Bar

    Operating Temperature

    -40℃~+160℃

    Operating Environment

    Ballast and bilge system          Chemical processing

    Desalination plants   Drilling rigs    Drinking water

    Dry powder     Food and beverage     Gas plants

    HAVC  Mining industry  Paper industry    Sand handling     Seawater    Sugar industry

    Thermo technical water treatment   Waste water

    Driving  method

    Hand  Lever  Worm Gear  Electric  Pneumatic

     Main Material:

    Name

    Material

    Body

    Cast Iron  Ductile Iron

    Disc

    Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze

    Shaft

    Stainless Steel  Monel K500

    Seat

    BUNA  NBR  EPDM  VITON  HEPDM  Neoprene  Hypalon Natural rubber

    flange butterfly valve drawing
