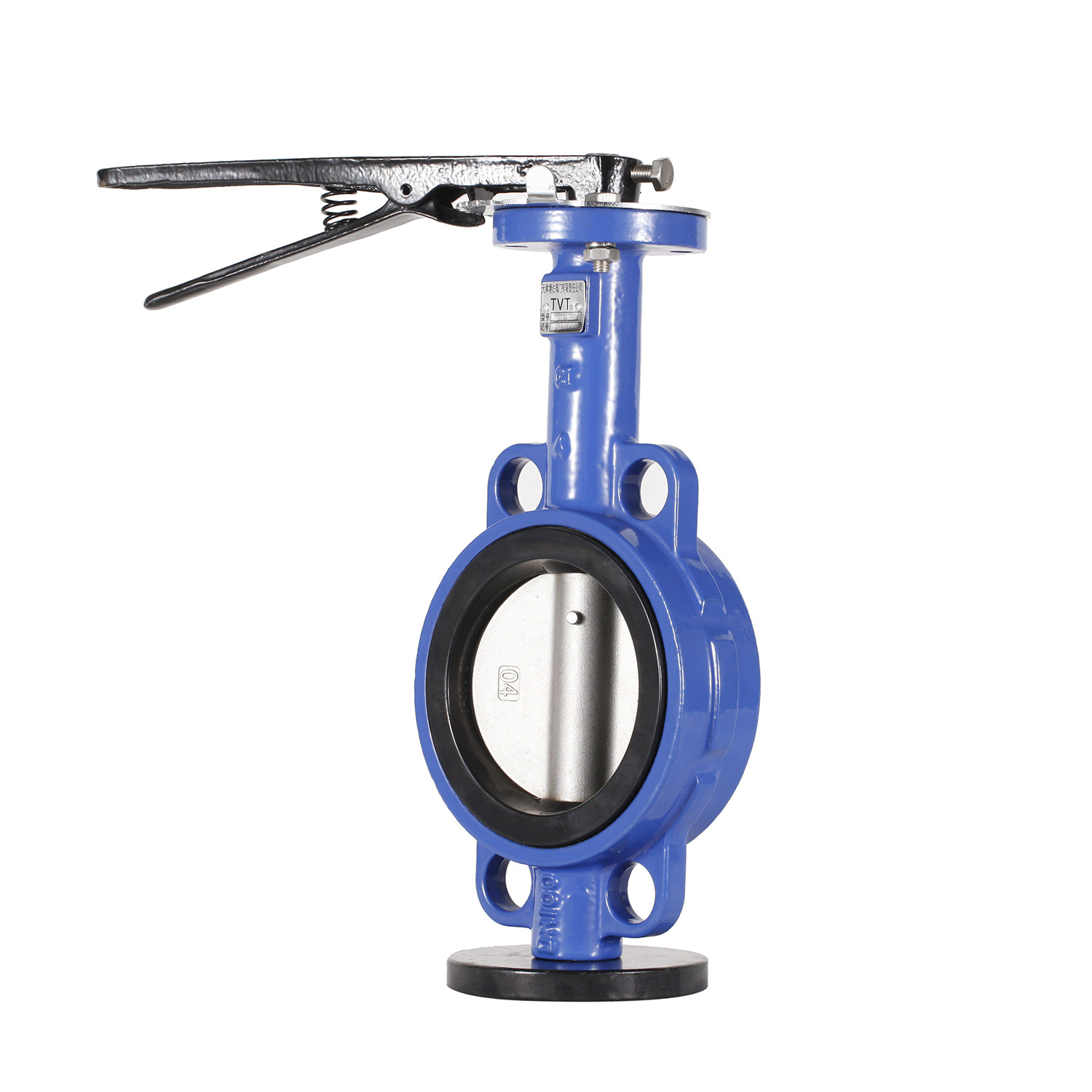

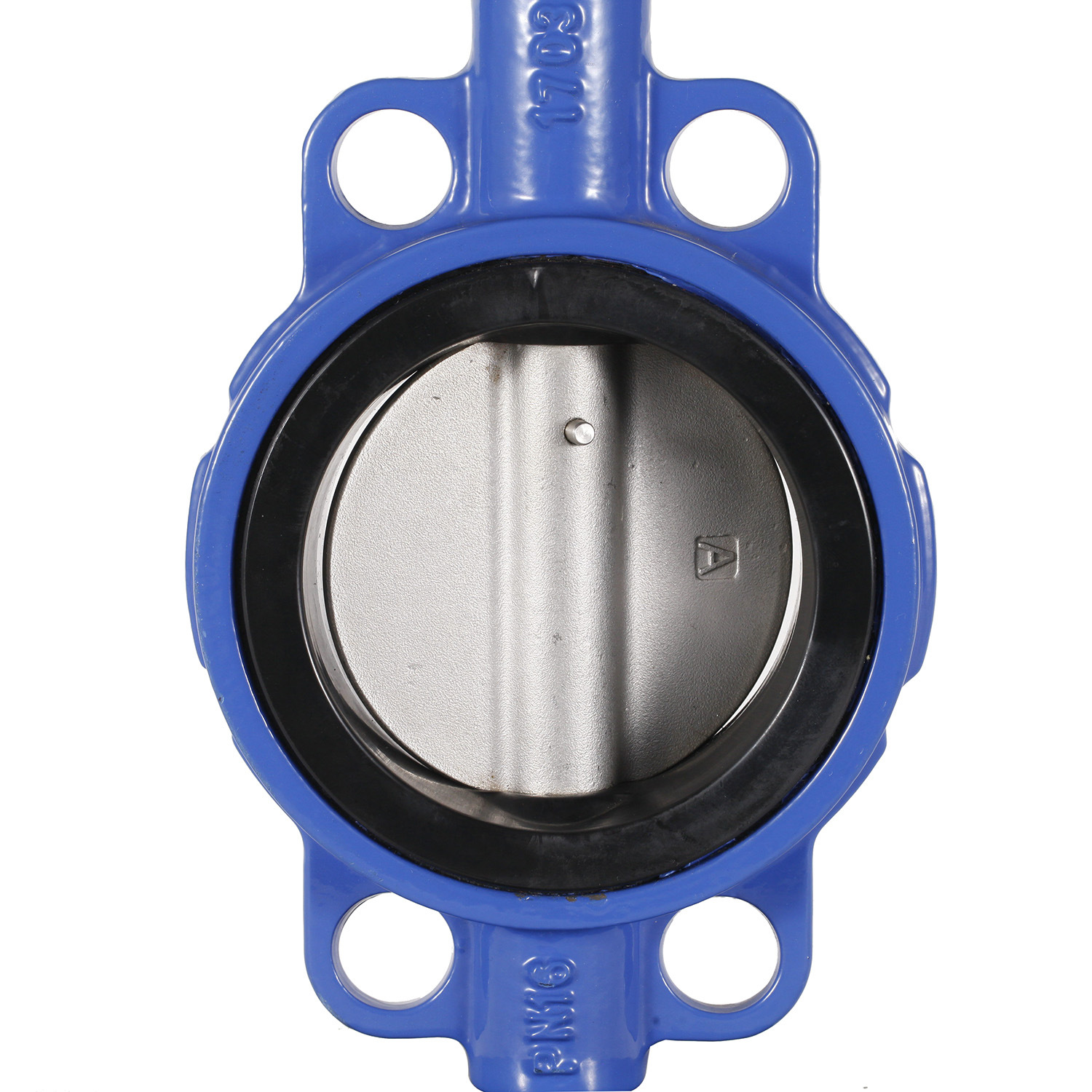

Multi-Standard Wafer Butterfly Valve Factory Direct

Size: DN50-DN1000Body:Cast Iron,Ductile Iron,Carbon Steel,Stainless SteelSeat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,SilionShaft: Stainless Steel 416,316,304Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+P

Quantity:
-
+
SUBMIT RFQ
Product Details

Size: DN50-DN1000
Body:Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
Seat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
Shaft: Stainless Steel 416,316,304
Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,Bronze
Bushing:PTFE
O-ring:NBR EPDM

Specifications:

Size

DN50-DN1000

Nominal Pressure

PN10/16, 150-300LB

Working Temperature

-30。c - 135。C

Suitable Media

Chemicals, air, water, steam, oil, acids, salts ect



Standards:

Design standard

 API609, ANSI16.34, JISB2064, GB T12238

Face to Face

 API609, DIN3202, ISO5752, BS5155

Flange drilling

 DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K

Top Flange

 ISO5211

Test Inspection

 API598


aterial:

 Body

 Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel

 Disc

 Ductile Iron, Carbon Steel, Stainless Steel

 Stem

 Stainless Steel

 Seat

 EPDM, NBR, PTFE, VITON, HYPALON

 O ring

 EPDM, NBR
